Mercusys AC12 wireless router Dual-band (2.4 GHz / 5 GHz) Fast Ethernet Black

• Supports 802.11ac standard - the next generation of Wi-Fi
• Enjoy smooth online gaming and video streaming with dual band 1200Mbps Wi-Fi
• 4 External Antennas Greatly Expand Wireless Coverage
• Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
• Easy installation - intuitive webpage guides you through the setup process in minutes
• IPTV and IPv6 Supported

Blazing-Fast Everyday Wi-Fi
Complying with the powerful 802.11ac standard, AC12 delivers a blazing-fast Wi-Fi speed of up to 1200Mbps, which is 3x faster than the speed of the previous 802.11n standard. AC12 lets your home devices achieve their optimal Wi-Fi performance. It is the superior choice for providing faster, stronger Wi-Fi over your home or office.

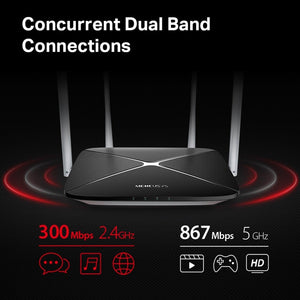

Concurrent Dual Band Connections
AC12 provides simultaneous dual-band Wi-Fi signals. The 2.4GHz band delivers 300Mbps Wi-Fi for everyday activities like surfing the internet and sending emails. The crystal 5GHz band reaches 867Mbps so you can game online and stream in HD simultaneously. Both bands work at the same time to meet the needs of multiple tasks on different devices

Strong Signal, Great Coverage
Four external 5dBi antennas powered with advanced antenna technology provide users with larger wireless coverage and wireless signal intensity throughout your large home or office, making weak, dropped connections a thing of the past.

Superior Online Experience with IPv6 & IPTV
Compatible with IPv6, AC12 allows you to enjoy IPv6 services provided by ISP and visit IPv6 websites.

IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming for high network efficiency and superior online experience.

Easy Three-Step Installation
With no need for complicated configuration, you can simply follow the step-by-step instructions on the intuitive webpage to set up your AC12 in minutes.

1 Create a unique login password
2 Choose your internet service and enter the required information
3 Set your wireless network name ( SSID ) and password

Advanced Security
WPA/WPA2 encryption creates an active defense against security threats and intruders

2x2 MIMO
Increases wireless transmission efficiency between multiple devices

Guest Network
Keep your main network secure with a separate network for guests

Specifications

Ethernet Ports
3 x 10/100Mbps LAN Ports
1 x 10/100Mbps WAN Port

Buttons
WPS/Reset Button

External Power Supply
9V/0.85A

Dimensions (W X D X H)
222 x 140 x 32 mm

Antenna Type
4 x 5dBi

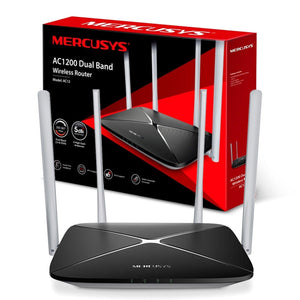

Package Contents
AC1200 Wireless Dual Band Router (AC12)
Power Adapter
Ethernet Cable
Quick Installation Guide

Wireless Standards
IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz

Frequency
2.4 - 2.5GHz, 5.15 - 5.25GHz

Signal Rate
300Mbps at 2.4GHz, 867Mbps at 5GHz

Reception Sensitivity
5GHz
11a 6M: -92dBm
11a 54M: -75dBm
11ac 20M MCS8: -70dBm
11ac 40M MCS9: -64dBm
11ac 80M MCS9: -60dBm

2.4GHz
11g 6M: -95dBm
11g 54M: -77dBm
11n 20M MCS7: -74dBm
11n 40M MCS7: -71dBm

Wireless Functions
Enable/Disable Wireless Radio, Wireless Statistics

Wireless Security
WPA-PSK / WPA2-PSK

WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

DHCP
Server

Port Forwarding
Virtual Server, UPnP, DMZ

Management
Access Control
Local Management
Remote Management

Firewall Security
IP and MAC Address Binding

Guest Network
2.4GHz Guest Network, 5GHz Guest Network
